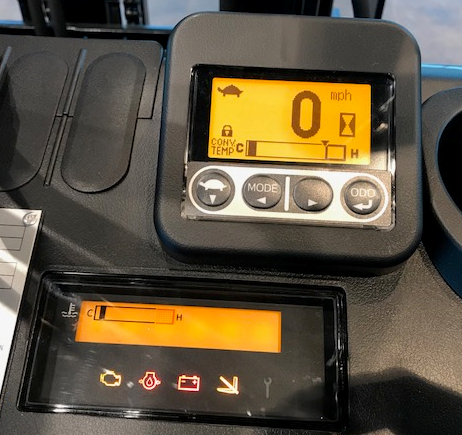

Toyota Forklift Dashboard Symbols and Meanings

Símbolos y significados del tablero de la carretilla elevadora Toyota

Las carretillas elevadoras desempeñan un papel indispensable en almacenes, obras de construcción y numerosas industrias. Toyota, un nombre confiable en este sector, ofrece maquinaria de primer nivel conocida por su confiabilidad y durabilidad. Sin embargo, incluso las mejores máquinas pueden mostrar ocasionalmente luces de advertencia inesperadas, lo que indica un problema subyacente. Para solucionar estos problemas, es esencial comprender los símbolos del tablero y no se puede enfatizar lo suficiente la eficacia de las herramientas de diagnóstico.

En esta extensa guía, profundizaremos en el corazón de los símbolos del tablero de las carretillas elevadoras Toyota , sus significados y cómo el uso de una herramienta de diagnóstico, especialmente el software de diagnóstico Jaltest , puede simplificar el proceso de resolución de problemas. Hemos incluido un vídeo para mostrarte cómo Jaltest realiza esto en un Toyota.

Tabla de contenido


1. Introducción a las carretillas elevadoras Toyota
2. Una mirada en profundidad a los símbolos y significados del tablero de instrumentos de Toyota Forklift
3. La importancia incomparable de las herramientas de diagnóstico
4. En qué se destaca el software de diagnóstico Jaltest
5. Diagnóstico de carretillas elevadoras Toyota : la diferencia que hace Jaltest
6. Cómo verificar códigos en una carretilla elevadora Toyota usando Jaltest
7. El futuro de la tecnología de escáner de montacargas Toyota
8. Conclusión

Introducción a las carretillas elevadoras Toyota


Los montacargas Toyota destacan por sus avances tecnológicos, durabilidad y eficiencia. Pero como cualquier maquinaria, no son inmunes al desgaste o al mal funcionamiento ocasional. Reconocer y abordar las señales de advertencia tempranamente garantiza la longevidad y un rendimiento óptimo.

Símbolos y significados del tablero de la carretilla elevadora Toyota

  1. Luz de advertencia de batería:

    • Símbolo: normalmente representado por un icono de batería.
    • Significado: Indica que la carga de la batería del montacargas es baja o que hay un problema con el sistema de carga. Es fundamental comprobar las conexiones de la batería y, si es necesario, sustituir la batería o consultar a un técnico.
  2. Luz de presión de aceite del motor:

    • Símbolo: Un bote de aceite.
    • Significado: Significa baja presión de aceite. Se requiere acción inmediata si esta luz permanece encendida después de arrancar. Pare el motor, verifique el nivel de aceite y, si está bien, consulte a un técnico.
  3. Luz de advertencia de temperatura:

    • Símbolo: Un termómetro sumergido en líquido.
    • Significado: Esto indica que el motor se está sobrecalentando. Apague el motor, déjelo enfriar y verifique el nivel de refrigerante. Si el nivel de refrigerante está bien, el problema puede estar en el radiador o el termostato.
  4. Luz de advertencia de aceite hidráulico:

    • Símbolo: Una lata de aceite con una línea ondulada debajo.
    • Significado: Indica que el nivel de líquido hidráulico es bajo o que hay un problema con el sistema hidráulico. Esto puede afectar la capacidad de elevación y la funcionalidad general del montacargas.
  5. Luz de advertencia de freno:

    • Símbolo: Un signo de exclamación dentro de un círculo o un círculo entre paréntesis.
    • Significado: Representa un problema con el sistema de frenos. Podría deberse a un nivel bajo de líquido de frenos, pastillas de freno desgastadas o un mal funcionamiento en el sistema de frenos. Es vital abordar este problema lo antes posible, ya que los frenos son cruciales para la seguridad.
  6. Luz de advertencia de inclinación:

    • Símbolo: Mástil de montacargas con indicación de ángulo.
    • Significado: Advierte al operador que el ángulo de inclinación del mástil está excediendo los límites de seguridad. Es fundamental ajustar la carga o el mástil para evitar accidentes.
  7. Luz de advertencia del cinturón de seguridad:

    • Símbolo: Una persona sentada con un cinturón en el regazo.
    • Significado: Esto recuerda al operador que debe abrocharse el cinturón antes de operar el montacargas. Es una característica de seguridad crucial.
  8. Luz de advertencia del filtro de aire:

    • Símbolo: Un icono de ventilador o similar a un filtro.
    • Significado: Indica que el filtro de aire está obstruido o necesita ser reemplazado. Un filtro de aire limpio garantiza un rendimiento y una longevidad óptimos del motor.
  9. Comprobar la luz del motor:

    • Símbolo: Un bloque de motor o simplemente las palabras Check Engine.”.
    • Significado: Este es un indicador general de que hay un mal funcionamiento dentro del sistema de gestión del motor. Una herramienta de diagnóstico como Jaltest puede identificar el problema exacto.
  10. Luz de advertencia de transmisión:

  • Símbolo: Un engranaje con un signo de exclamación.
  • Significado: Sugiere un problema con el sistema de transmisión. El problema podría estar en el líquido, los engranajes o cualquier componente dentro del sistema de transmisión.

La importancia incomparable de las herramientas de diagnóstico


Con los avances de la tecnología, los antiguos métodos de solución de problemas de prueba y error han quedado obsoletos. Hoy en día, las herramientas de diagnóstico, especialmente para maquinaria especializada como las carretillas elevadoras, son indispensables. Estas herramientas pueden identificar problemas, ahorrando tiempo y costos a largo plazo.

En qué se destaca el software de diagnóstico Jaltest


Jaltest destaca en el mundo del diagnóstico multimarca. Este escáner integral para montacargas Toyota está diseñado específicamente para estas máquinas, lo que garantiza diagnósticos precisos y rápidos. Su amplia base de datos y su interfaz fácil de usar lo distinguen.

Diagnóstico de carretillas elevadoras Toyota : la diferencia que hace Jaltest


- **Diagnósticos Precisos**: Gracias a su amplia base de datos.
- **Ahorro de tiempo**: resultados rápidos y precisos reemplazan la resolución de problemas manual.
- **Interfaz fácil de usar**: Navegable incluso para principiantes.

Cómo verificar códigos en una carretilla elevadora Toyota usando Jaltest

1. **Conecte el Escáner Jaltest **: Conéctelo al puerto de diagnóstico del montacargas.
2. **Inicie el software**: elija el modelo de montacargas Toyota específico.
3. **Escanear**: El software mostrará códigos de falla o problemas.
4. **Revise y actúe**: la información técnica, las funciones especiales y la información sobre solución de problemas le ayudarán a simplificar sus próximos pasos.

Conclusión


La familiaridad con los símbolos del tablero de los montacargas Toyota y sus significados es fundamental para los operadores y técnicos. Pero para agilizar verdaderamente el proceso de resolución de problemas, la incorporación de herramientas de diagnóstico, especialmente potentes como Jaltest, no es negociable. Equipado con el conocimiento y las herramientas adecuados, garantizar que el máximo rendimiento de su montacargas Toyota se convierta en una tarea sin complicaciones.
