Yale Fault Code List: Keeping Your Material Handling Equipment On The Job

Liste des codes d'erreur Yale : Garder votre équipement de manutention en service

Hyster-Yale Materials Handling Corporation est une entreprise américaine qui produit une gamme de chariots élévateurs et d'autres équipements de manutention de matériaux (MHE). Son premier chariot élévateur a quitté la chaîne de montage dans les années 1920 sous le nom de Yale & Towne Manufacturing.

L'entreprise conçoit, fabrique, vend et entretient aujourd'hui une large gamme de chariots élévateurs alimentés par des moteurs diesel, électriques et GPL. Cette variété est ce qui a fait de Yale un nom incontournable à l'échelle mondiale dans le domaine des équipements de manutention.

Si vous êtes propriétaire d'équipement Yale, vous devriez avoir le logiciel de diagnostic Jaltest pour identifier et résoudre tout problème mineur avant qu'il ne devienne un problème majeur. Notre Liste des codes d'erreur Yale est un outil de maintenance très pratique pour garder votre équipement en service sans temps d'arrêt et sans perturber votre emploi du temps opérationnel.

La liste des codes de défaut du chariot élévateur Yale Jaltest est parmi les meilleures dans ce créneau car elle offre une couverture approfondie de toute la gamme de produits de Yale. Parmi les modèles couverts par nos codes de défaut de chariot élévateur Yale figurent GDP 50VX, ERP030-40VT, et plus encore. Des procédures simples aux plus complexes telles que les régénérations forcées, la surveillance des données en direct et les analyses complètes du système, le logiciel Jaltest vous couvre avec des identifications et des résolutions de problèmes qui ne sont pas moins que des services de niveau concessionnaire.

Les codes d'erreur du chariot élévateur Yale de Jaltest a un menu convivial qui vous guide à travers tout problème opérationnel et offre des résolutions rapides correspondant au code. Vous obtenez une multitude d'informations techniques de l'équipement sur l'écran de l'ordinateur portable et ainsi la rectification du coffre peut être effectuée sans effort.

 Contactez-nous pour en savoir plus sur les outils de diagnostic d'équipement de manutention Yale.

Les Fonctions du Code d'Erreur Yale

Lorsque vous utilisez l'outil de maintenance Jaltest, vous pouvez effectuer des fonctions de résolution de problèmes pour tous les composants de tout équipement de manutention Yale. Vous obtenez des informations techniques faciles à comprendre et des schémas de câblage, ainsi que l'accès au menu de mot de passe de service pour définir des mots de passe.

Le principal avantage de notre code d'erreur Yale vous pouvez effectuer l'effacement des codes d'erreur, que l'équipement soit propulsé par des moteurs diesel, électriques ou GPL. Vous obtenez des résultats optimisés lorsque vous dépannez par symptômes à partir du menu de diagnostic. Le logiciel vous guide à travers plusieurs étapes pour identifier avec précision le problème du chariot élévateur.

Parmi les étapes critiques que vous allez suivre, il y a la vérification de l'injecteur et des connexions électriques, de l'Unité de Contrôle Électronique, et enfin, vous serez aidé à effacer le Liste des codes d'erreur de chariot élévateur Yale pour vérifier que le problème a été résolu. Ces solutions avancées ramèneront rapidement vos chariots élévateurs Yale en activité.

Le point fort de la liste des codes de défaut Jaltest Yale qui la rend supérieure aux autres dans le domaine est l'information technique et système détaillée fournie dans le menu de diagnostic. Une fois que vous accédez au logiciel, vous obtenez des données techniques détaillées pour des analyses complètes du système, des réinitialisations de maintenance et des fonctions spéciales (raccourcis).

Après avoir atteint ce stade de maintenance, vous vous verrez proposer des solutions complètes qui couvrent l'ordinateur central, les systèmes hydrauliques, les modules électroniques, les modules de puissance, les tableaux de bord, et plus encore.

De plus, vous pouvez connecter et diagnostiquer des problèmes avec Cummings, Yanmar, et d'autres grandes marques de moteurs qui alimentent les chariots élévateurs Yale afin de tirer le meilleur parti de votre équipement de manutention de cette marque.

Outil de maintenance avancé et liste des codes d'erreur de chariot élévateur Yale

Avec le logiciel de diagnostic avancé Jaltest pour la manutention de matériel Yale, vous pouvez effacer les codes d'erreur quel que soit le modèle et le mode de propulsion. Ainsi, le logiciel est tout aussi utile pour vérifier le Liste des codes de défaut des chariots élévateurs électriques Yale ou pour des équipements fonctionnant au diesel ou au GPL. Diagnostiquer les symptômes et effectuer un diagnostic rapide de tout problème.

Vous serez aidé par des diagrammes détaillés afin que vous ne soyez jamais perdu concernant les résolutions de problèmes. Les systèmes critiques incluent l'unité de contrôle de gestion du moteur, les leviers multifonctionnels, le levier de marche arrière, et plus encore. Vous pouvez vous passer des manuels et obtenir des solutions de niveau concessionnaire pour tous les problèmes, des moteurs, à l'hydraulique, aux transmissions, et plus encore.

Comment effacer la liste des codes d'erreur du chariot élévateur Yale

Bien que la liste des codes d'erreur Yale apparaisse sur certaines générations plus anciennes de chariots élévateurs Yale, tous les nouveaux modèles de chariots élévateurs affichent le code d'erreur de l'équipement sur le tableau de bord. Ces codes ne sont pas standardisés et diffèrent d'un modèle à l'autre. Alors, comment accéder au système pour effacer tout Code de défaut Yale?

Pour accéder au système, vous avez besoin du mot de passe fourni par l'entreprise. Celui-ci est souvent modifié par le concessionnaire avant l'expédition. Alternativement, vous pouvez aller dans le menu du logiciel de diagnostic Jaltest pour définir le mot de passe.

Après avoir accédé au système, vous pouvez voir le code de défaut, combien de fois il s'est produit et quand. Une fois que vous connaissez le code de défaut précis, vous pouvez vérifier avec la liste des codes de défaut Jaltest Yale pour connaître la nature précise du problème.

Pour en arriver à ce stade, vous devez connecter l'ordinateur portable avec le logiciel de diagnostic Jaltest à votre équipement Yale et le code d'erreur s'affichera à l'écran. Vous pouvez ensuite suivre les résolutions données dans l'outil de maintenance Jaltest.

parcourant la liste des codes d'erreur Yale, vous serez confronté à deux possibilités.

Le premier s'appelle la liste des codes de défaut en attente qui est stockée dans l'ordinateur de bord de l'équipement de manutention Yale. Il indique qu'il y a un problème probable mais qui n'a pas été confirmé par des occurrences répétées. Ce code de défaut doit être surveillé pour vérifier si ce problème persiste.

Si vous constatez que ce problème persiste sur plusieurs cycles de conduite, il doit être déplacé de la liste des codes de défaut en attente à la liste des codes de défaut permanents pour des actions et des rectifications supplémentaires. L'avantage d'identifier un code de défaut en attente est qu'il peut être rapidement résolu avant de devenir un problème majeur.

La deuxième possibilité est le permanent Codes de défaut des chariots élévateurs Yale où le code de diagnostic de panne (DTC) est stocké dans l'ordinateur de bord. Lorsque l'outil de maintenance Jaltest trouve un tel problème, il doit être réparé avant de pouvoir être effacé de la liste des codes de panne Yale.

Il faut vérifier si le problème est résolu sur plusieurs cycles de conduite. Résoudre les codes de défaut permanents est essentiel car cela entrave constamment les performances optimisées de votre équipement de manutention Yale.

Lire la suite à propos de la résolution de problèmes dans l'équipement de manutention de Yale.

Codes de défaut de chariot élévateur Yale – Un échantillon

Pour comprendre le concept de la liste des codes d'erreur Yale, voici quelques exemples de codes d'erreur Yale qui pourraient apparaître sur l'écran de votre logiciel de diagnostic lorsque vous le connectez à l'ordinateur de bord de l'équipement Yale.

524223-0 : La pression inverse de la XMSN est supérieure à la pression commandée.

524225-0 : La pression avant de la XMSN est supérieure à la pression commandée.

524223-1 : La pression inverse de la XMSN est inférieure à celle commandée

524225-1 : La pression de transmission avant est inférieure à celle commandée.

105-3 : Capteur de température d'air d'admission OORH

110-3 : Capteur de température du liquide de refroidissement OORH

177-3 : Capteur de température d'huile de transmission OORH

522603-3 : Capteur de température de carburant (GPL) OORH

105-4 : Capteur de température d'air d'admission OORL

Une fois que vous avez le code de défaut accompagné d'une description de ce qui ne va pas avec l'équipement, vous pouvez initier des mesures correctives pour le remettre en service.

Par exemple, prenons le code d'erreur Yale 3701-0. C'est une indication qu'il y a une accumulation de suie dans le filtre à particules diesel de votre équipement Yale et qu'il doit être nettoyé pour éviter que le chariot élévateur ne passe en mode dégradé.

Le logiciel Jaltest peut mesurer l'étendue de la suie dans le DPF et fournir des solutions comme des niveaux de service élevés, très élevés ou normaux appelés régénérations forcées. Une fois la régénération forcée terminée, un rapport d'état sur le DPF et la régénération du convertisseur catalytique SCR est soumis par l'outil de maintenance Jaltest Yale.

Résumé

Pour les propriétaires d'équipements de manutention Yale (MHE) tels que les chariots élévateurs, les chariots élévateurs à fourche et les transpalettes Yale, l'outil de diagnostic Jaltest est essentiel pour maintenir l'équipement en service sans subir de temps d'arrêt. Le code de défaut vous guidera à travers tout problème avec votre équipement, qu'il soit Codes de défaut du transpalette Yale, codes de défaut de chariot élévateur électrique Yale, ou tout autre.

Notre logiciel fournit des solutions de pointe afin que votre équipement ne soit pas affecté par un problème mineur ou majeur pendant longtemps. Ce qui rend le logiciel particulièrement convivial, c'est la facilité avec laquelle il peut être installé sur votre ordinateur portable. Il n'y a pas de processus de configuration élaboré contrairement à d'autres dans ce créneau, il suffit de brancher et le logiciel est prêt à l'emploi.

Enfin, nous proposons trois mises à jour du logiciel chaque année, car nous comprenons que Yale met régulièrement en œuvre des innovations technologiques sur ses chariots élévateurs. Grâce aux mises à jour, vous serez au courant des changements et le logiciel Jaltest ne deviendra jamais obsolète.

Laissez un commentaire

Veuillez noter que les commentaires doivent être approvés avant d'être affichés

Ce site est protégé par hCaptcha, et la Politique de confidentialité et les Conditions de service de hCaptcha s’appliquent.

Jaltest MHE Diagnostic Software – The Ultimate Tool For Troubleshooting

Jaltest MHE Diagnostic Software – The Ultimate Tool For Troubleshooting

MHE or Material Handling Equipment refers broadly to a wide range of machines that are used to move, store, and control materials and products during manufacturing and distribution processes. They are used to handle products during a part of their life cycle, from loading and unloading to storage and transportation.

Equipment that falls into this category includes forklifts, conveyors, cranes, hoists, automated guided vehicles (AGVs), and more. They are used in several industries including manufacturing, warehousing, retail, construction, and logistics.

If you have a fleet of Material Handling Equipment, your goal would be to ensure that they are regularly on the job without downtime and that you do not face any logistical nightmares. For this, you need the Jaltest MHE diagnostic tool that identifies any minor problem with your equipment through fault codes and troubleshoots them if they become a major issue that might lead to downtime.

Now, what are fault codes that are tracked by our Jaltest MHE diagnostic software?

Every modern vehicle and material handling or construction equipment has an onboard computer (OBD) known as the Engine Control Unit (ECU). It continuously tracks and monitors all systems and components and in case of any malfunction, sends out warning signals in alpha-numeric format called fault codes or Diagnostic Trouble Codes (DTCs).

These are seen on the display screen of the OBD, generally tucked away below the dashboard. Whenever a fault code appears, connect our Jaltest material handling diagnostic tool to the OBD and get the interpretation of the code, know what is wrong with the equipment, and be guided through rectification solutions. Your MHE will soon be back on the job again through resolutions that are no less than what is offered by dealers or service engineers.

So far as the Jaltest forklift troubleshooting tool is concerned, it is good for a wide range of make and models of equipment. You can carry out several diagnostic and maintenance processes, from simple to complex activities on well-known brands of forklifts such as Caterpillar, Toyota, Hyster, Yale, and more. Further, our tool works equally well for all forklift brands regardless of the propulsion mode – diesel, electric, or LPG.

What makes our Jaltest material handling scan tool a leader in this niche is the cutting-edge features that are incorporated into it. You get a user-friendly diagnostic menu that handholds you through resolutions for any issue, helped along by live technical and maintenance information provided in real-time once you connect the software to the OBD of your material handling equipment. Moreover, you get detailed wiring diagrams for all systems and components, helping you to locate the faults for easy diagnosis.

Need help with your Material Handling Equipment?

Click Here

Technical Information About The Jaltest Forklift Diagnostic Tool

Forklifts are the workhorse of material handling equipment and the Jaltest material handling scan tool greatly focuses on this piece of equipment. It provides important and critical information about the health of your forklifts that helps you to take quick action through the Jaltest MHE troubleshooting scan tool.

You get a host of data while diagnosing the state of your forklifts. This includes information about high engine coolant temperature, very low injection rail pressure, or whether the injector cylinder resistance value is out of range. Data at this level was previously available at the dealer-level only.

Other technical data that you get is linked to maintenance activities carried out on various systems. You can set mast parameters, read fault codes, scan control levers for any issues, and check steering sensors. You can also actuate components that include the mast raising solenoid valve, the mast tilt control solenoid valve, the swing lock solenoid valve, and others.

In short, our Jaltest MHE tool provides all information and problem solutions that keep your forklifts in peak performance mode through live data obtained from their onboard computers. The Jaltest tool ensures that any fault-clearing activity is done directly from the diagnostic menu, making for a seamless experience.

However, to use the Jaltest forklift maintenance tool to its optimum capability and get the maximum service from it, you need to use the password of your forklift. You should access the forklift service password menu, reset the master factory password, and get the required password code. Once this is received, others should be allowed access to it only on a need-to-know basis so that your forklift operations are secure.

Read more about forklift fault codes here.

Clearing Fault Codes With The Jaltest MHE Troubleshooting Tool

With our Jaltest MHE diagnostic software, troubleshooting faults is a seamless activity. Our tool provides two options, namely “full system scans” and “scanning by symptoms”.

In the first instance, you can carry out scans at fixed periods as a part of maintenance activity. Any temporary fault codes will be detected and swift action taken through the Jaltest tool before they become a major issue. Usually, these types of fault codes get cleared automatically in a few driving cycles but if not, “scanning by symptoms” has to be initiated.

This is usually a more serious issue and might require complex fault clearance processes. Here, our Jaltest material handling diagnostic scanner guides users through a user-friendly menu to quickly understand the fault by the symptoms and take corrective action.

Now let us understand how fault codes are cleared with our Jaltest material handling diagnostic software.

First, turn the ignition to ON but do not switch on the engine. The display panel of the OBD computer will be powered on and the fault code related to a malfunction will be shown on the screen. Now, connect the Jaltest MHE diagnostic tool to the onboard computer and the fault code will be shown on the software laptop along with the actions required to clear it.

This process is regardless of whether you are using the Jaltest forklift or lift truck diagnostic tool (it holds good for any other material handling equipment too). The benefit here is that you do not have to wait for certified engineers to turn up and can get your material handling equipment back on the job sooner as the resolutions are done on the premises only.

If you are troubleshooting the diesel engines of your MHE, combine the Cojali diagnostic tool with the Jaltest software for excellent results.

Jaltest Forklift Diagnostic Tool and Forced Regens

Whenever a fault code is registered that is related to the engine of your forklift or any other material handling equipment, extra caution must be exercised and immediate action should be taken to clear it. One of the complex fault-clearing actions that is specific to diesel engines is forced regens.

Every diesel engine has a Diesel Particulate Filter (DPF) that traps soot and particulate matter from emission gasses before they are released, making for a cleaner environment. When engines run continuously at high speeds this excess soot buildup is burned off. However, at lower speeds and in stop-go-stop work as in forklifts and other material handling equipment, the soot is retained in the DPF, requiring forced regens to be carried out.

When the DPF is clogged, extra pressure is put on the engine, reducing its performance and efficiency. In worst cases, the equipment might go into limp mode. If the fault code related to this malfunction shows up on the OBD, connect the Jaltest MHE diagnostic software to the equipment and follow the instructions.

Forced regens usually entail running the engine at high rev for around 40 minutes. The increase in temperature of the emission gasses burns away the soot buildup.

Summing Up

Our Jaltest MHE scanning software is an optimized tool that keeps your fleet of material handling equipment in high operating mode without downtime. It is a user-friendly tool and unlike other software in this niche, does not require any elaborate configuration or setup procedures. Simply download the software, connect with the OBD of your MHE and you are ready for fault-clearing activities.

We also issue three updates to our software every year to ensure that it is in sync with technological innovations made by brands to their material handling equipment.

A Guide to The Mack Truck Fault Codes List – Everything You Need To Know

A Guide to The Mack Truck Fault Codes List – Everything You Need To Know

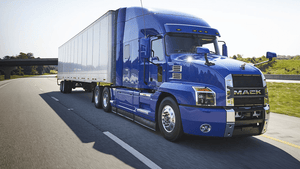

Founded in 1900 as the Mack Brothers Company, Mack Trucks, Inc. is an American truck manufacturing company and a former manufacturer of buses and trolley buses. Started in Brooklyn, the company moved its headquarters to Allentown, Pennsylvania, five years later in 1905. It remained there for over a century till in 2009, the company relocated its headquarters to Greensboro, North Carolina.
